White Color Monofilament Polyester Mesh For Screen Printing , Easy To Clean

Brand Name : PFM

Model Number : PFM-LIS

Certification : FDA

Place of Origin : Hebei China

MOQ : 1 meter

Price : Negotiable

Payment Terms : L/C, D/A, T/T, Western Union, ，Trade assurance,Paypal

Supply Ability : 3000meters per week

Delivery Time : 3-10days

Packaging Details : Plastic bag inside on one roll and plywood case outside,or cut into small pieces and plastic bag.

Material : Monofilament polyester

Thread diameter : 40-550micron

Mesh : 13-500mesh/inch

Length : accord to your request

color : yellow

Model : DPP5-DPP200

Contact Now

White Color Monofilament Polyester Mesh For Screen Printing , Easy To Clean

1. Description of polyester printing mesh

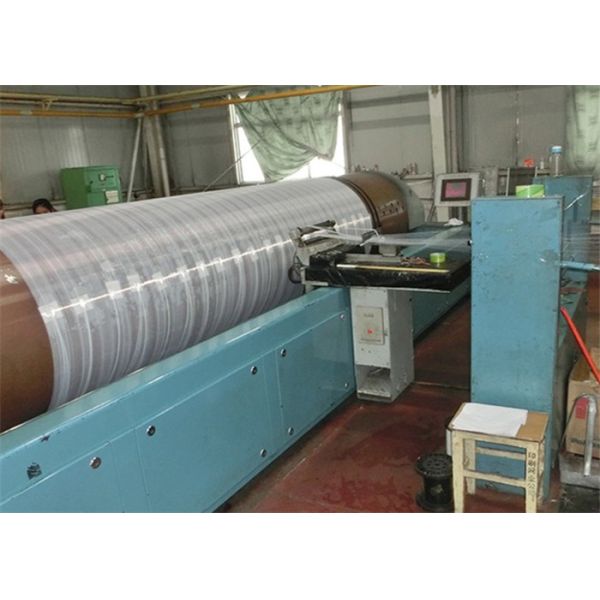

Products using high-quality polyester filament as raw material, the use of Switzerland Sulzer film shuttle production monofilament silk screen mesh, high precision products, good stability, complete specifications, affordable.

2. Application

Widely used in PCB, electronics, plastics, metal, paper, textiles and other industries and materials.

3. Specification

COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15 6 400 1270 64 720 460 30-60
18 7 350 1078 64 640 410 30-60
20 8 300 950 58 550 319 30-60
25 10 250 750 56 620 347 30-60
30 12 250 583 49 450 220 30-60
30 12 150 683 67 300 201 30-60
40 16 200 425 46 400 184 30-60
50 20 80 420 71 120 85 35-37
50 20 150 350 49 260 127 30-60
60 24 100 316 58 136 78 35-40
60 24 120 297 50 240 120 35-60
73 29 120 225 43 240 103 35-60
80 32 64 248 63 95 59 30-34
80 32 100 212 46 200 92 35-40
85 34 100 195 44 221 97 35-40
90 36 100 178 41 216 88 35-40
100 39 55 200 61 88 53 25-30
100 39 80 176 47 150 70 35-37
110 43 80 153 43 130 56 35-37
120 47 55 158 55 88 48 25-30
120 47 71 142 44 135 59 30-34
135 53 55 133 50 86 43 25-30
135 53 64 125 44 100 44 26-31
150 59 64 105 38 100 38 26-31
160 64 55 101 42 98 41 25-30
160 64 64 92 35 120 42 30-34
180 72 48 91 43 78 66 27-29
180 72 55 84 37 100 37 25-30
200 80 48 77 38 74 28 27-29
195 77 55 75 33 105 34 25-30
230 90 48 63 33 85 28 27-29
250 100 40 60 36 70 25 20-24
280 110 40 51 31 85 26 20-24
305 120 40 43 27 68 18 20-24
355 140 34 37 27 58 15 22-24
380 150 31 36 29 46 13 21-23
420 165 31 30 24 46 11 21-23
460 180 27 28 26 56 14 20-22

4. Features of polyester printing mesh

  • Flat and evenly surface,accurately mesh
  • high tension,Screen printing process under the ink is good
  • Polyester material,non-toxic and odorless
  • Good anti-wrinkle,good elasticity,stable under tension, not easy to deform, resistant to sunlight and abrasion.
  • Stored without mildew, good electrical insulation, good chemical resistance, resistance to weak acid and alkali, resistant to dilute acid at room temperature, intolerant alkali.

White Color Monofilament Polyester Mesh For Screen Printing , Easy To Clean

White Color Monofilament Polyester Mesh For Screen Printing , Easy To Clean

White Color Monofilament Polyester Mesh For Screen Printing , Easy To Clean
